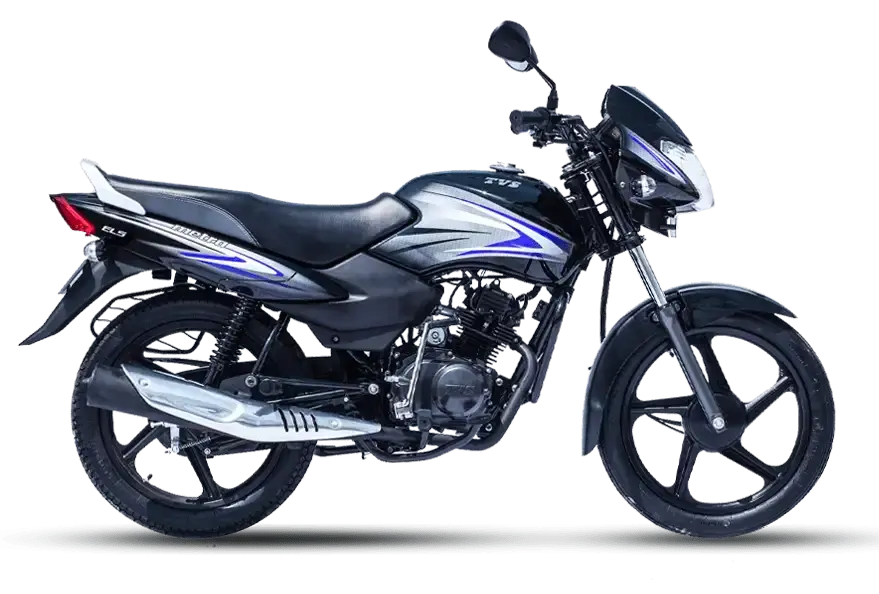

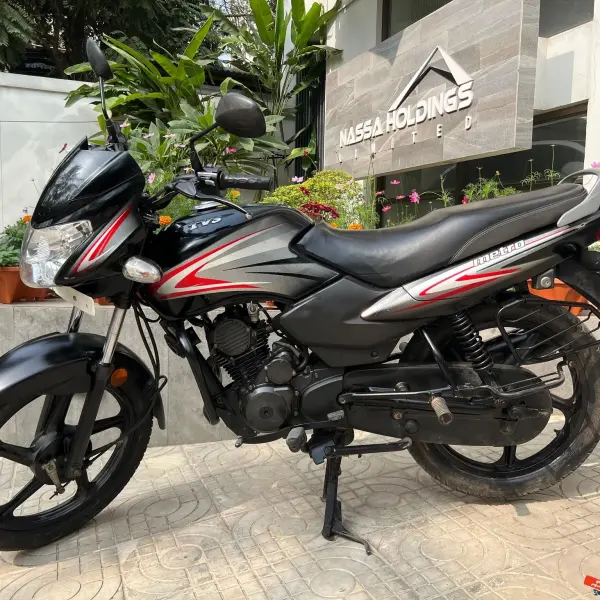

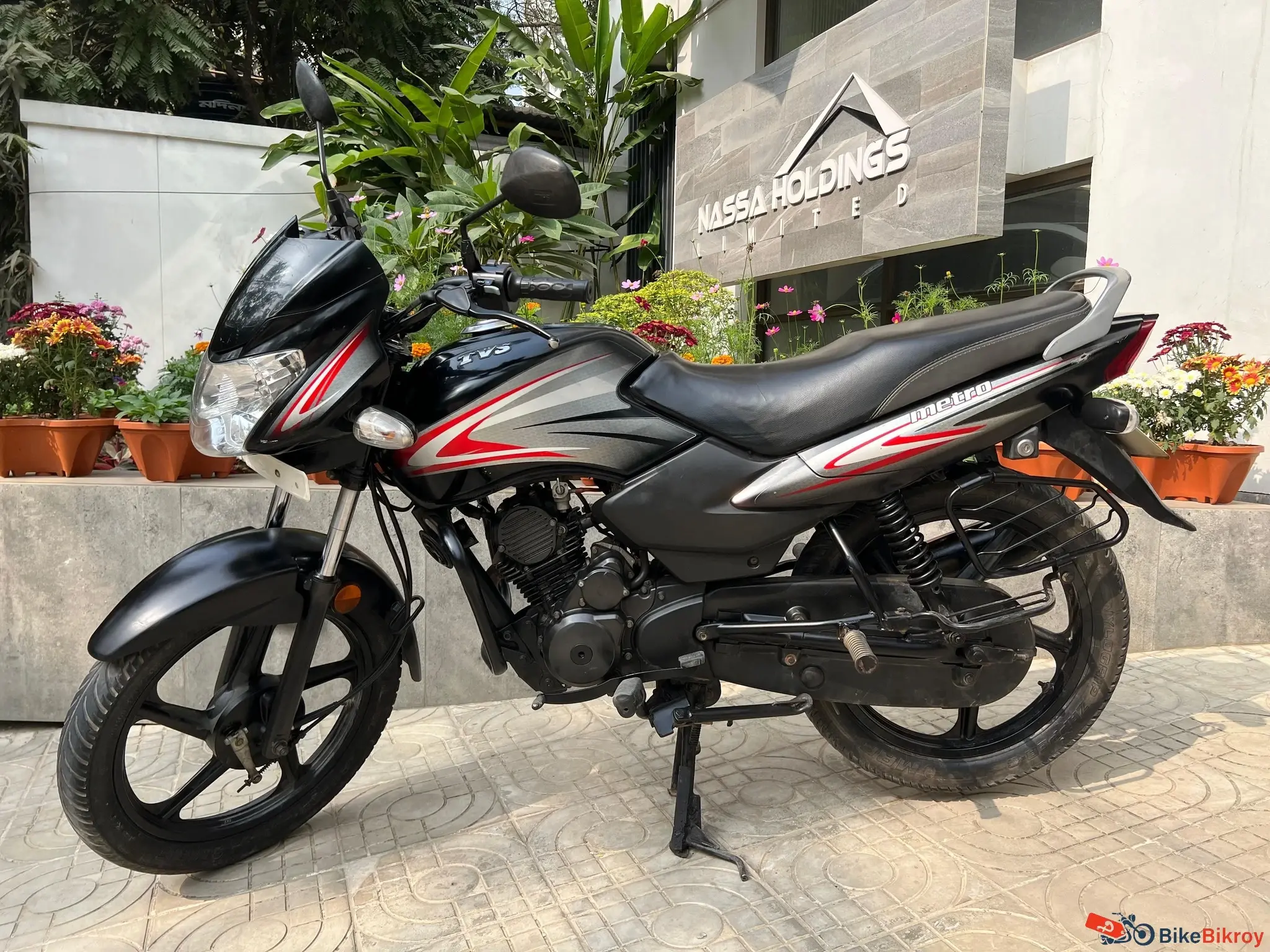

TVS Metro

Engine Type

Air cooled, 4 stroke, SI engine

Displacement

99.7cc

Maximum Power

7.3 Bhp @ 7500 RPM

Maximum Torque

7.5 NM @ 5000 RPM

Bore

51 mm

Stroke

48.8 mm

Compression Ratio

9.15:1

Valves

2

Fuel Supply

Carburetor

No of Cylinders

1

Engine Cooling

Air Cooled

Starting Method

Kick & Electric

Engine Oil Grade

N/A

Engine Oil Capacity

N/A

Best Lube For

N/A

Transmission Type

Manual

No of Gears

4

Clutch Type

Wet-multiplate

Drive Type

N/A

Mileage

50 Kmpl (Approx)

Top Speed

85 Kmph (Approx)

Chassis Type

Single cradle tubular frame

Front Suspension

Telescopic hydraulic fork (110 mm stroke)

Rear Suspension

5 step adjustable hydraulic shocks with swing arm.

Front Brake Type

Drum Brake

Rear Brake Type

Drum Brake

Front Brake Diameter

N/A

Rear Brake Diameter

N/A

Anti-Lock Braking System (ABS)

No

Braking System

Drum Brake

Front Tyre Size

2.75 × 17 -4 Ply rating

Rear Tyre Size

3.00× 17 -6 Ply rating

Tyre Type

tubeless ( See Apollo Tyre's )

Wheel Type

Alloy

Overall Length

1990 mm

Overall Width

705 mm

Height

1080 mm

Ground Clearance

170 mm

Weight

103 Kg

Fuel Tank Capacity

12L

Wheelbase

1280 mm

Seat Height

780 mm

Battery Type

mf

Battery Voltage

12v

Head Light

12V 35/35W (Halogen) ( See FNM Led Light's )

Tail Light

led

Indicators

halogen

Speedometer

analog

Odometer

analog

RPM Meter

Digital

Handle Type

Pipe handle bar

Seat Type

Single-Seat

Passenger Grab Rail

yes

Engine Kill Switch

Info-Not-Available

Additional Feature

N/A
